ne of the largest climatic chambers in Europe and a set of tests facilities for ageing, natural or artificial pollution

The climatic chamber

Discover the climatic chamber in video

The accelerated ageing room

Visit the ageing room

Presentation of the 3 testing facilities

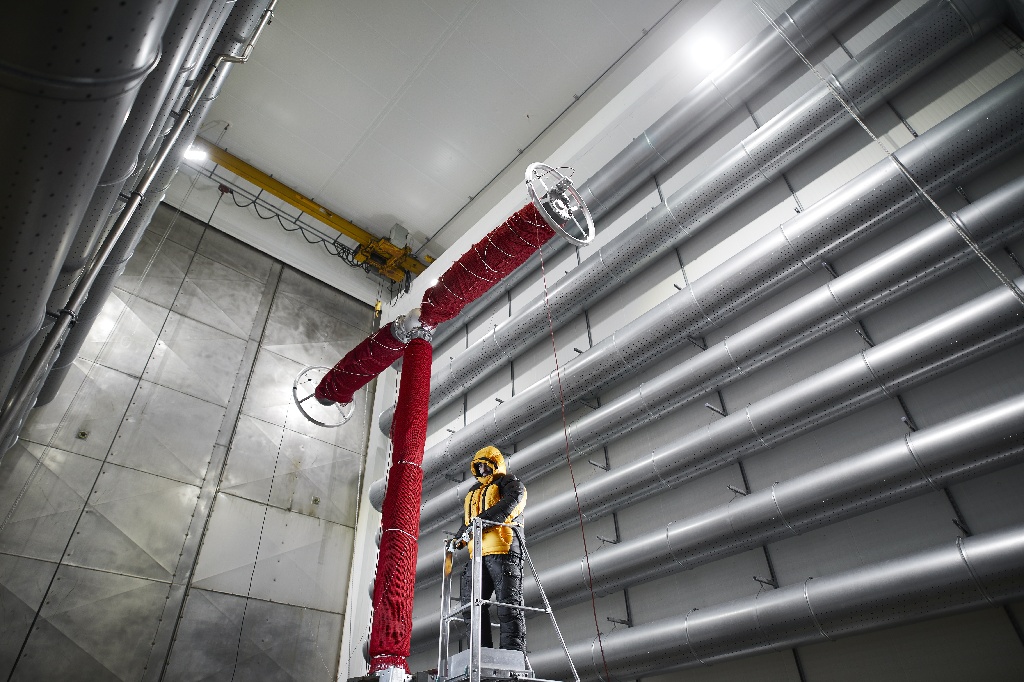

Our outstanding 1200 m3 climatic chamber enables to test all kind of equipment under very cold or very hot temperatures from -40 to +60 °C.

We also have 2 tests facilities enabling to submit apparatus to harsh environmental constraints in order to qualify their performance over the years:

  • A 675 m3 accelerated ageing chamber used for testing switchgears following cycles (rain, salt fog, heat (+50 °C), damp and solar radiation) according to international standards or dedicated specifications.
  • Our Martigues seashore test laboratory with several test areas enabling to expose equipment to combined environmental strains (severe conditions of marine and industrial pollutions, heavy sunshine and few rainfall).

Download documents

Technical capabilities

Climatic Chamber

Fully renovated, this testing facility simulates the environmental contraints that a material could encounter in real conditions of implantation.

  Climatic room Mobile climatic chamber
Sizes
(L x W x H)		 14,6 m x 6,5 m x 12,6 m (1200 m3) 2 m x 1,9 m x 5 to 6,9 m (19 to 26 m3)
Testing capacity Temperatures: -40 °C / + 60 °C
Variation: -5°C/hour - +7°C/hour
Ice harrows: 12 m x 3 m et 2,5 m x 2,5 m
Sun harrow:  6 m x 2 m – 1200 W/m2
LT source  :
DC 0 à 300 V / 30 A
AC single-phase 0 to 250 V / 20 A
AC Three-phase 0 to 400 V / 63 A		 Temperature: -25°C / + 60 °C
Performed tests Climatical endurance test, under ice testing, solar radiation, humidity Thermal conditioning  of measuring transformers



Accelerated ageing room

Generates severe climatic stresses for a relatively long period (ranging from weeks to a few months), allowing to withstand ageing

Sizes
(L x W x H)		 Accelerated ageing room
9,6 m x 7,4 m x 9,5 m (675 m3)
Testing capacity 2 adjustable single-phase 50 Hz sources :
0-57,8 kV and 0-170 kV
Combined cycle of rain / heat (+50°C)/humidity (Hr 95%)/salt fog/sun radiation
Performed tests Powered ageing test, pollution, solar radiation



Martigues seashore test station

  2,2/13,8 kV stand 24 kV stand 58 kV stand 140/245 kV stand
Sizes (L x W x H) 9,6 m x 7,4 m x 9,5 m
Testing capacity

Measurement of leakage currents and meteorological data
Severe marine and industrial pollution SPS Class C
Sunshine rate of 3000 hours per year
Low rainfall
Performed tests Powered ageing tests for all types of materials
